MIDI HEKI - pre 2020
PLEASE TAKE CARE TO CHOOSE CORRECT VERSION AS THERE WERE 3 VERSIONS
PUSH UP BAR
CRANK / WINDING HANDLE
ELECTRIC

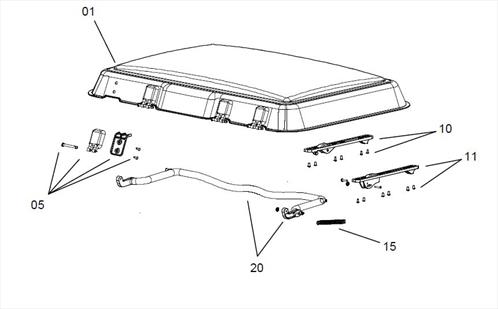

PLEASE CLICK ON PDF BELOW FOR FULL PARTS DIAGRAMS
LS Part Number: MIDI HEKI - pre 2020
| Image Ref | LS part number | Manufacturers part number | Description |
|---|---|---|---|
| BG1512 | old glazing panel NLA - now use 4460000296 (comes with white banding) | ||
| 4460000296 | 4460000296 (WAS BG4493-WHITE) | NEW POST 2020 MIDI HEKI GLAZING PANEL RAL 9016 WHITE BORDER | |
| BG1513 | MIDI HEKI HINGE WITH FIXINGS (set of 4) | ||
| BG1515 | SPRING SET MIDI HEKI | ||
| BG1520 | BG1520 | SPRING LEFT and RIGHT | |
| 4460000210 | 4460000210 (WAS BG1521) | SEAL FOR MIDI HEKI | |
| 4460000307 | 4460000307 (was bg1516) | OPERATING BAR MIDI HEKI (was bg1516) | |
| 4460000212 | 4460000212 (was BG1716) | GEARING MECHANISM -usually also need cog 4460000215 | |
| 4460000249 | 4460000249 (WAS BG1717) | GEAR MECHANISM (ELECTRIC VERSION) | |
| 4460000213 | 4460000213 (was BG1714) | MIDI HEKI STAYS WITH ASSY PARTS | |
| 4460000823 (was BG1708) | 4460000823 (was BG1708) | FLEX SHAFT - WITH ASSY PARTS | |
| BG1594 | BG1594 | HEKI ROOFLIGHT MOTOR | |
| BG1113 | BG1113 | SPRING CLAMPS MINI HEKI / AIR QUAD (SET OF 12) | |
| 4460000265 | 4460000265 (BG2577250500) | COMPLETE BLIND/FLYSCREEN IN CREAM for MIDI HEKI | |
| BG1392 | BG1392 | INTERIOR FRAME CPL MIDI HEKI (BAR VERSION) |
